If you specialize in modifying and adapting remanufactured engines for new cabs—that is, installing older engines in modern cabs—then you'll understand that the electrical system requires a module to operate the instrument panel, called a J1939 converter (250k to 500k). However, to ensure the cab functions correctly from the factory, it's also important to enable the switches for cruise control, retarder, parking brake, clutch, fan, and others. This requires sending logic signals to the engine control unit (ECU) that activate or deactivate Ground or Open via the switch module.

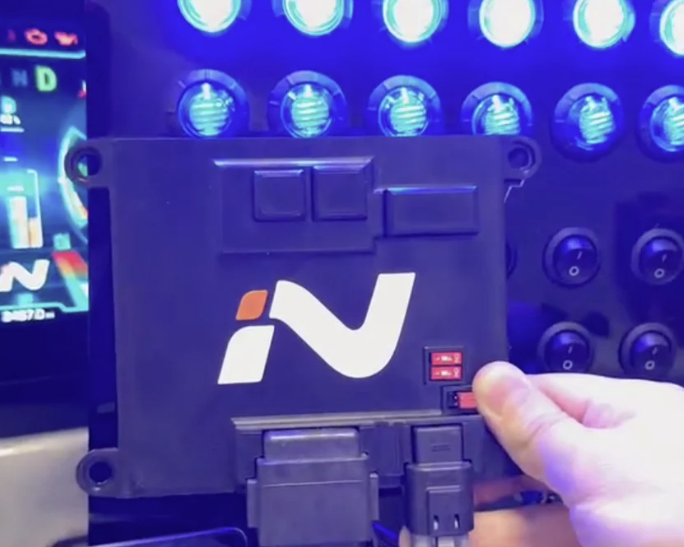

But how do you find the hexadecimal data for the multiplexed network to condition the outputs? This will be done using the software included with the Inpronic Switch Module and the J1708. Here you can see which byte changes and the resulting value when each switch position is activated or deactivated, including those on the lever next to the truck's steering wheel, which controls the retarder. Once you have found the hexadecimal values, you can associate them with the necessary change for each output and easily program it so that everything on your truck is enabled and functioning perfectly.
