Master LIN communication in real vehicles
Monitor, sniff, and control LIN-Bus networks with a hands-on training expansion built for technicians, educators, and ECU reverse engineers

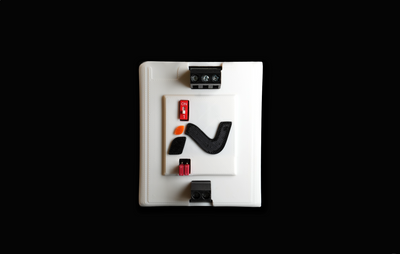

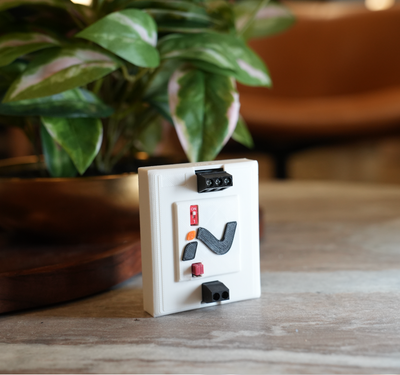

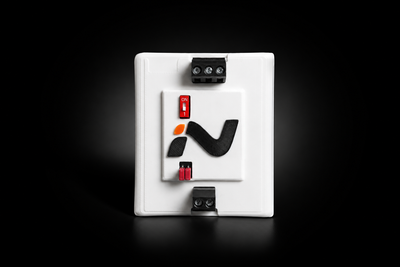

LIN BUS Daughter Board
LIN – BUS DAUGHTER BOARD
The LIN – BUS DAUGHTER BOARD lets you decode, visualize, and monitor everything happening on a LIN wire in real time. It supports connecting to LIN networks across different vehicles, selecting the LIN baud rate, viewing the master headers continuously transmitted on the bus, and reading the slave responses.
With PRO Software (TX mode), you can transmit the required data so compatible LIN slave modules can listen to your board and perform the intended actions—for example, controlling lights, wipers, and other LIN-controlled functions (depending on the vehicle/module design and permitted behavior).
How it works (simple flow)

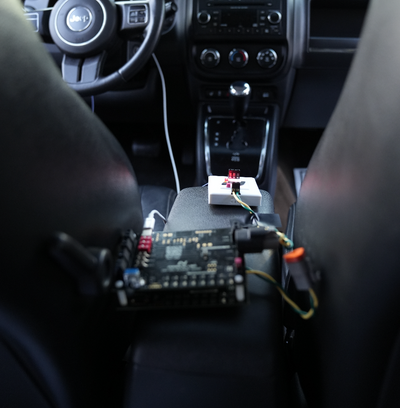

Connect the LIN – BUS DAUGHTER BOARD to the target LIN wire.
Select the correct LIN baud rate in the software.
Monitor in real time:
Master headers
Slave responses
DON'T INCLUDE THE TRAINER KIT
Pairs well with
In stock! Ships within 1-2 business days.
Free Shipping in the U.S.
LIN BUS Daughter Board
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Become a Master of LIN BUS Communication
Monitor, decode, and verify LIN communication in real vehicles.
Train, diagnose, and validate module responses with professional hardware and software.
Functional Validation
Modern vehicles rely on LIN-Bus for comfort and body functions like door modules, mirrors, window controls, seat motors, steering column controls, HVAC actuators, and more.
If you can’t sniff and interpret LIN frames, you’re working blind. This board helps yousee the data, test responses, and validate behaviorin a controlled environment—using real communication.
Free shipping in the U.S.
From theory to action — with real results
Don’t just read about LIN. Train with real communication. Build confidence using repeatable setups that teach how data moves, how modules react, and how to troubleshoot faster.
FAQs
Please read our FAQs page to find out more.
Who is it for?
Technicians, mechanics, educators, students, and engineers who want to understand and work with LIN-Bus at a practical level.
Can I use it for diagnostics?
Yes—especially for verifying LIN activity, confirming responses, and troubleshooting body/comfort systems before replacing modules.
Does it comes with the CAN BUS Multiplex Trainer
No. It does not comes with the trainer. This is the daughter board to LINBUS Communication
